This Retail Express POS Hardware (System) Bundle is compatible with the Retail Express POS Software (Software not included as this is a hardware only bundle). It gives you everything you need to get started with Retail Express using high quality and reliable equipment.

This bundle includes:

1 x Element 455W 15.6" Touch POS Terminal with Windows 10 IOT

1 x Element RW973II USB Thermal Receipt Printer

1 x Zebra ZD421 4" Label Label Printer with USB Interface for product Labels

1 x Element P303BT Bluetooth Barcode Scanner with USB Charging/Comms Dock

1 x Cash Drawer with 5 Notes & 8 Coin Sections

1 x Box 80x80 Thermal Paper Rolls (24qty)

1 x 5 Pack of 50 x 28 Direct Thermal Labels (10000 labels in total)

1 x Wireless Keyboard & Mouse Combo

As this POS Terminal doesn't have inbuilt wifi, you can add a Nano USB Wifi Dongle which plugs into a USB port and will allow you to connect wirelessly to your router/modem. You can also add a keyboard & mouse combo if you don't already have one. These are both options you can select.

Check out the below details for individual product specifications!

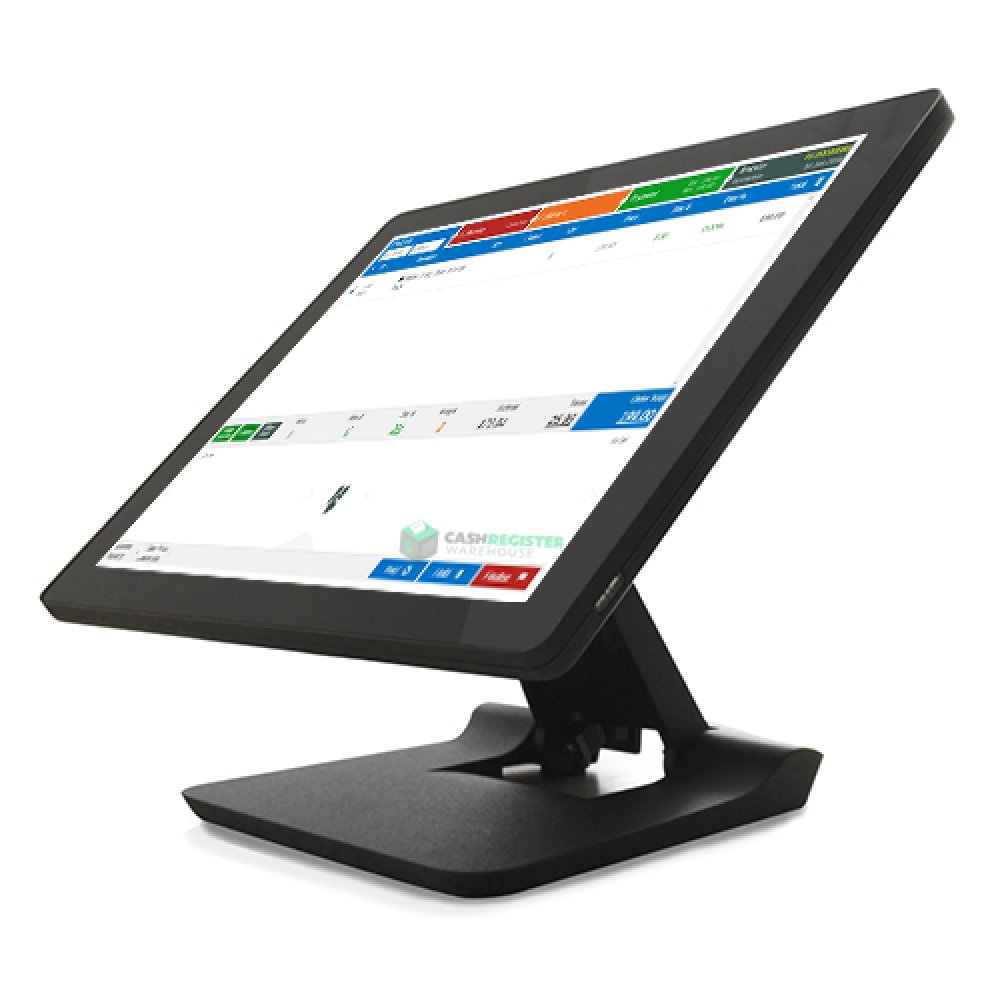

Element 455W 15.6" Touch POS Terminal

Element 455W J6412 15.6" Touch Screen POS Terminal with Intel® Elkhart Lake Celeron J6412 Processor, 8GB Ram, 128GB SSD & Windows 10 IoT.

Element 455W

Versatile and Outstanding 15.6" POS

The Element 455 is a beautifully designed die-casting POS solution with excellent performance. Empowered by transformable function between a desktop POS and a wall-mounted POS, Element 455 improves your store space management and increases the efficiency and customer satisfaction of your services. A variety of peripheral modules such as MSR, iButton, Fingerprint, Second Display, and Customer Display is designed specifically for retail and hospitality scenarios.

System

Motherboard: F34

Processor: Intel® Elkhart Lake Celeron J6412

Memory: 8GB DDR4

Storage: 128GB SSD (M.2)

OS: Windows 10 IoT Enterprise LTSC 2019 Entry 64BIT pre-installed

Display

Size and Resolution: 15.6" 1920x1080

Touch Screen: True-Flat PCAP multi-touch

I/O ports

USB Type-A: 2x USB3.0, 2x USB2.0

USB Type-C: 1x USB2.0 (data only), 1x USB3.0 (data only)

FeDP: 1x Proprietary miniDP (for 2nd display)

Serial Port: 2x DB9 (default 0V; COM1/COM2: 0V, 5V, 12V)

LAN: 1x RJ45

Cash Drawer: 1x RJ11

DC Jack: 1x 4PIN (with latch)

Power Adapter: 65W / 19V

No Audio IC

Please Note: Magnetic Swipe Reader (MSR) is not included which is shown in the image.

This product has a 36 Month Warranty

Element RW973II USB Thermal Receipt Printer

The Element RW973II Thermal Receipt Printer is a solid and reliable unit capable of handling receipt printing in high volume transaction environments. Featuring triple interface (USB, Serial & Ethernet/LAN), it can print out at 300mm/sec and is compact and easy to use. The RW973II also includes an Auto Cutter, Power Supply and Serial and USB cables.

Element RW973 MKII, Max 300mm/s, 58/80mm, Windows/ Linux/ OPOS drivers, 1D/2D barcode supported, dip switch, Reliability: 150km for TPH, 2 million cuts; two paper near end sensors; built-in USB+Serial+Ethernet interfaces

Main Features

- Patent design of unique vertical double auto cutter

- High printing speed up to 300mm/s

- Default USB interface, with RS232 and Ethernet

- Embedded with 2D barcode edition algorithm which supports the 2D barcode common in the market, such as QR code/ PDF417

- Windows/Linux drivers

- Complete OPOS driver

- Support page mode printing

- With paper jam detection and double paper near end detection

- Movable paper guard plate design which supports 58mm, 80mm wide thermal paper

This product has a 36 month return to base warranty

Zebra ZD421 4" Label Label Printer with USB Interface

Zebra ZD421 Direct Thermal Label Printer with USB & Bluetooth Interface + Modular Connectivity Slot

Direct Thermal Printer ZD421; 203 dpi, USB, USB Host, Modular Connectivity Slot, BTLE5, APAC Cord bundle (EU, UK, AUS, JP), Swiss Font, EZPL

Elevate your expectations with the advanced desktop printer that delivers the features, flexibility, reliability and security you need - today and tomorrow. Featuring Zebra’s exclusive Print DNA software suite, the ZD421 is easy to setup, operate, manage and maintain – onsite or remotely. Direct thermal, thermal transfer, healthcare and ribbon cartridge models support a wide variety of applications.

Unlike other brands, Zebra’s printers give you peace-of-mind security with PrintSecure, part of Print DNA, to prevent downtime and costly cyberattacks.

Advancing the legacy of Zebra’s popular GK Series, the ZD421 offers added features, capabilities and security that make it stand apart. It includes a more intuitive user interface, powerful new architecture and a field-upgradeable wireless kit. New media guide and media handling designs, as well as a moveable media sensor, make daily operation even easier and give you greater flexibility for more use cases.

Expect more. Achieve it with Zebra’s ZD421 hassle-free printers.

This product has a 12 month warranty

Element P303BT Bluetooth Barcode Scanner

The Element P303BT 2D Cordless Bluetooth Barcode Scanner has a 30m range (open space) and can scan 1D, 2D, Postal barcodes and OCR Barcodes from Mobile Phones and LCD Displays. The scanner is great for Retail, Hospitality and even medical with its disinfectant ready IP42 housing.

The Element P303BT 2D Cordless Bluetooth barcode scanner provides high speed, omnidirectional reading of 1D, 2D, Postal and OCR barcodes. Its versatility provides a super large field of view and 30-meter working range at open space. The cradle configuration allows for adaptability for different use cases, from presentation mode, self scanning and wall mounting.

The Element P303BT has the ability to read barcode reliably off cell phone screens and capability to work with Apple iOS, Android, Window PC/tablets. It is designed with a disinfectant ready, IP42 housing and replaceable battery. This versatile scanner is designed to meet the varying needs of your scanning applications.

- High speed, omnidirectional reading of 1D, 2D, Postal barcodes and OCR

- 30-meter working range at open space

- Reads barcode reliably off cell phone screens

- Disinfectant ready, IP42 housing

- Replaceable battery

This product comes with a 24 month warranty

Cash Drawer with 5 Notes & 8 Coin Sections

The EC-410 Cash Drawer is a solid steel cash drawer perfect for all Point of Sale Environments. By adding the under counter brackets you can easily mount the drawer giving extra security and make the installation neat & tidy.

Main Features

Solid Steel Construction - 5 Note Holders, 8 Coin Slots

2 Cheque/Media Slots

Steel Runners & Derlon Rollers

24V Solenoid - Designed for connection to receipt printers

1.6M Cable with RJ12 plug (Standard Receipt Printer Connector)

Black Colour Only

Dimensions: 410mm (w) x 415mm (d) x 110mm (h)

Can connect to Receipt Printer or Manually Opened by Key

2 Year Return To Base Warranty

80x80 Thermal Paper Rolls (24qty)

80x80 Thermal Paper Rolls - 24 Rolls/Box

These Premium rolls are made from the best Thermal Paper and have been tested to meet OEM Standards. They also have more length on the rolls compared to most standard rolls so you are getting more for your money. If you are to use cheap Thermal Roll you can damage the Thermal Print Head. Commonly Used for Computerised POS Printers (Epson, Citizen, SAM4S, Samsung)

50 x 28 Direct Thermal Labels (10000 labels in total)

50x28 Direct Thermal Labels, 2000 Labels Per Rolls, 5 Rolls = 10000 Labels.

High quality coated paper labels to not only increase the quality of the printed label but to also increase the life of your Direct Thermal printer (reduces wear on the print head as replacement print heads are expensive).

Specifications

Permanent Adhesive

50mm wide x 28mm deep

2000 Labels per roll

1 Label across

25mm Core

*Direct Thermal (DT): Direct Thermal printing is where the printhead comes in direct contact with the label media. There's a coating on the label media that turns black as heat is applied to it. Because of this, no ribbon is required.
